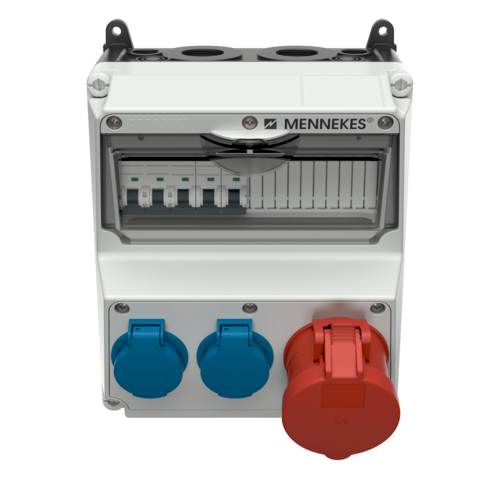

AMAXX® receptacle combination 920011
With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.
CEE 32 A, 5 p, 400 V
SCHUKO®
- pre-wired for installation
- hinged to the side
- enclosure and insert made of AMAPLAST
- fusing behind a transparent cover
Puede gestionar nuestros productos en el área Lista de deseos/Cesta de productos en distintas
listas.
Indique un nombre para la nueva lista
- Introduzca un nombre de lista
- El nombre de lista ya existe
- Indique un nombre de lista válido
Especificaciones técnicas
AMAXX® receptacle combination 920011
| CEE 32 A, 5 p, 400 V | 1 |
|---|---|
| SCHUKO® | 2 |
| Protecciones |
|
| Pre-fusible máx. | 63 A |
| InA | 48 A |
| RDF | 1 |
| Conexión / cable de alimentación |
|
| Grado de protección | IP44 |
| Material | plástico |
| Peso | 3320 g |
| Altura | 260 mm |
| Ancho | 225 mm |
